SYNCRO 6CH KT631ST Tx + KR631NT Rx (Mode 2)

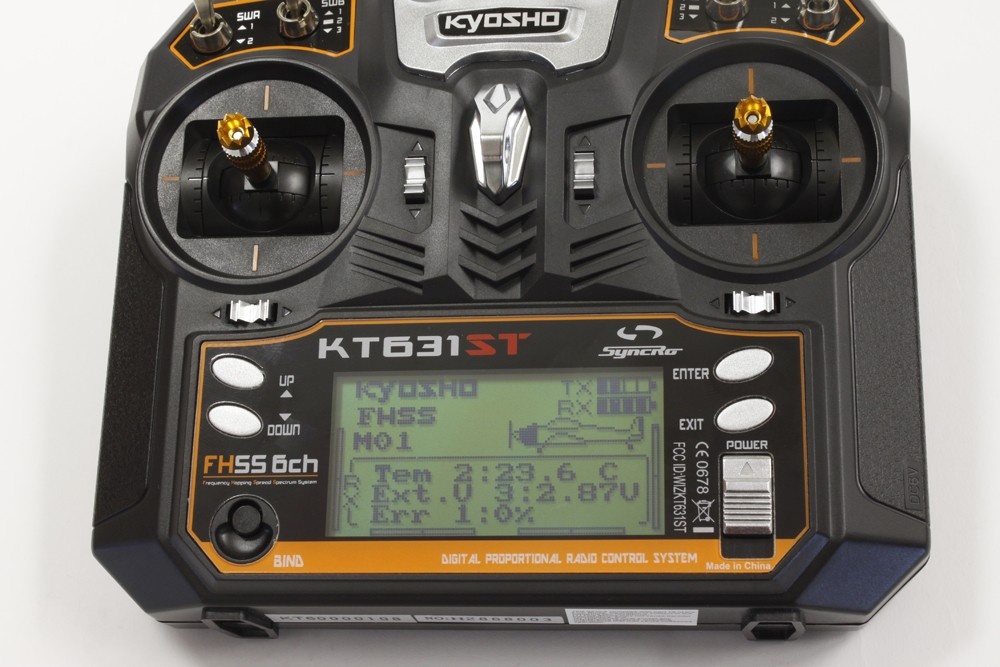

This intermediate-class 6ch transmitter and receiver set uses a telemetry system that displays information such as the receiver voltage and communication status (error rate) on the transmitter’s LCD screen. Ideal for the Calmato a and models with retractable undercarriage and flaps such as the SQS Warbird Series, this set delivers secure signal transmission whether operating EP or GP models. The versatility of the Syncro KT-631ST Set allows use not only with aircraft but also with yachts, cars and DRONE RACER. In addition, the SENS port on the included KR-631WT receiver can also be used to connect the optional voltage sensor (No.82137-1) and temperature sensor (No.82137-2).

Thin lightweight casing allows long periods of use without fatigue. Slip-resistant design of the sticks facilitates precision control with light touch. Stick length can be adjusted within a 5mm range. Line up includes Mode 1 for Japan and Mode 2 for other countries. Compatible Modes 1-4. These can be changed manually after purchase. ch5 and ch6 can be selected from the volume, toggle switch and 3-position toggle switch. Airplane, glider and helicopter modes can be selected (fixed pitch, variable pitch and 90°/120°/140°swash mode). Aileron difference can be set on airplanes with 2 aileron servos such as the Calmato a using ch1 and ch6. Safety alarm sounds when switched on and the throttle stick is not aligned with each switch position. KT-631ST and KR-631WT are equipped with a dual antennas to ensure reliable signal reception.

Einstellungen:

• 20 Modellspeicher
• Wählbar Flugzeug oder Helikopter
• Modellname
• Modell kopieren
• Modell reset
• Alarm für Unterspannung
• Failsafe
• Einstellung der Sensorinformationsanzeige
• Stick mode
• Einstellung der LCD-Helligkeit
• Auf Werkseinstellungen zurückgesetzt
• Kanalumkehr
• Endpunkt
• Kanalanzeige
• 5Schalterbelegung Kanal 5 und 6
• Sub-trim
• Dualerate und Expo Kanal 1-4
• Gaskurve
• throttle hold
• idle up
• Mischer für (Elevon / V tail / Flaperon / Spoilon / 3 optional settings)
• flight mode, idle up, throttle hold switch allocation

Technische Daten:

• 6 Kanäle
• Frequenz 2.4GHz
• System FHSS telemetry system
• Größe Sender: W174×L89×H190mm
• Größe Empfänger: W25.5×L47×H15mm
• Gewicht Sender: 400g (ohne Batterien)
• Gewicht Empfänger: 17g
• Reichweite Luft: 500m, Land: 300m, Wasser: 150m

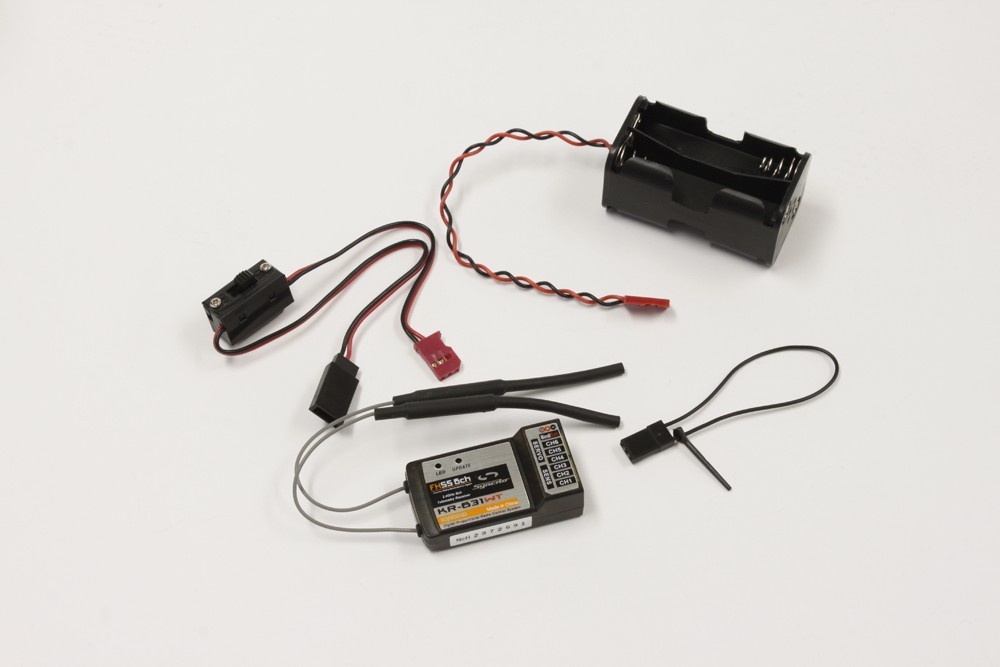

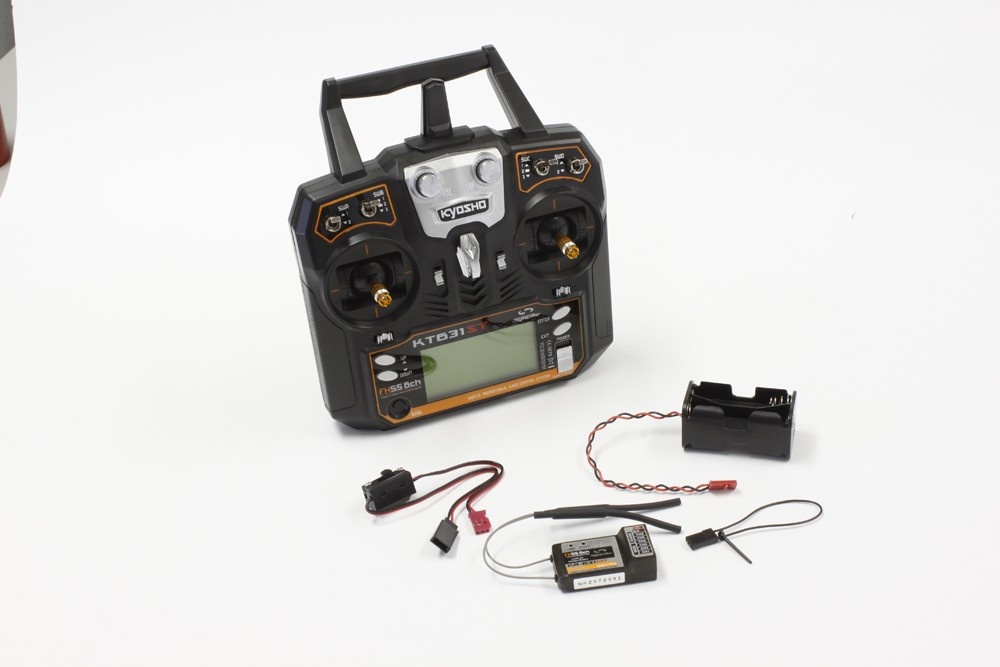

Lieferumfang:

• KT-631ST transmitter
• KR-631WT receiver
• Battery box for receiver
• Switch for receiver
• Binding connector
• Instruction manual

Separat erhältlich: 8 X AA size batteries (4 for transmitter, 4 for receiver) Spannungssensor Temperatursensor
